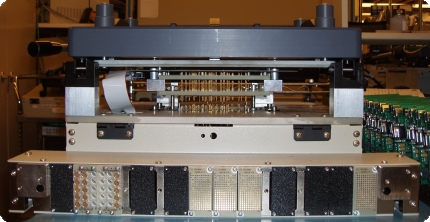

Programming Fixture: The fixture above loads firmware on production boards while testing functionality of components. Bed-of-nail type mass interconnect provides access to all test points on both sides of the boards through the connection block pins and coaxial connectors (bottom row).
