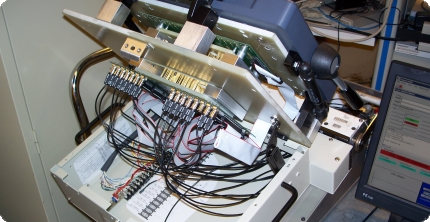

Programming Fixture (showing inside, and backplane)
Hundreds of pogo pins in a mass interconnect contact test points on the test board. Test system excercises and tests components, programs EEPROMs and Flash storage devices via boundary scan testing and Jtag programming. Diagnostics information is communicated to a PC, production database, and is available for web viewing using sQL Server.
